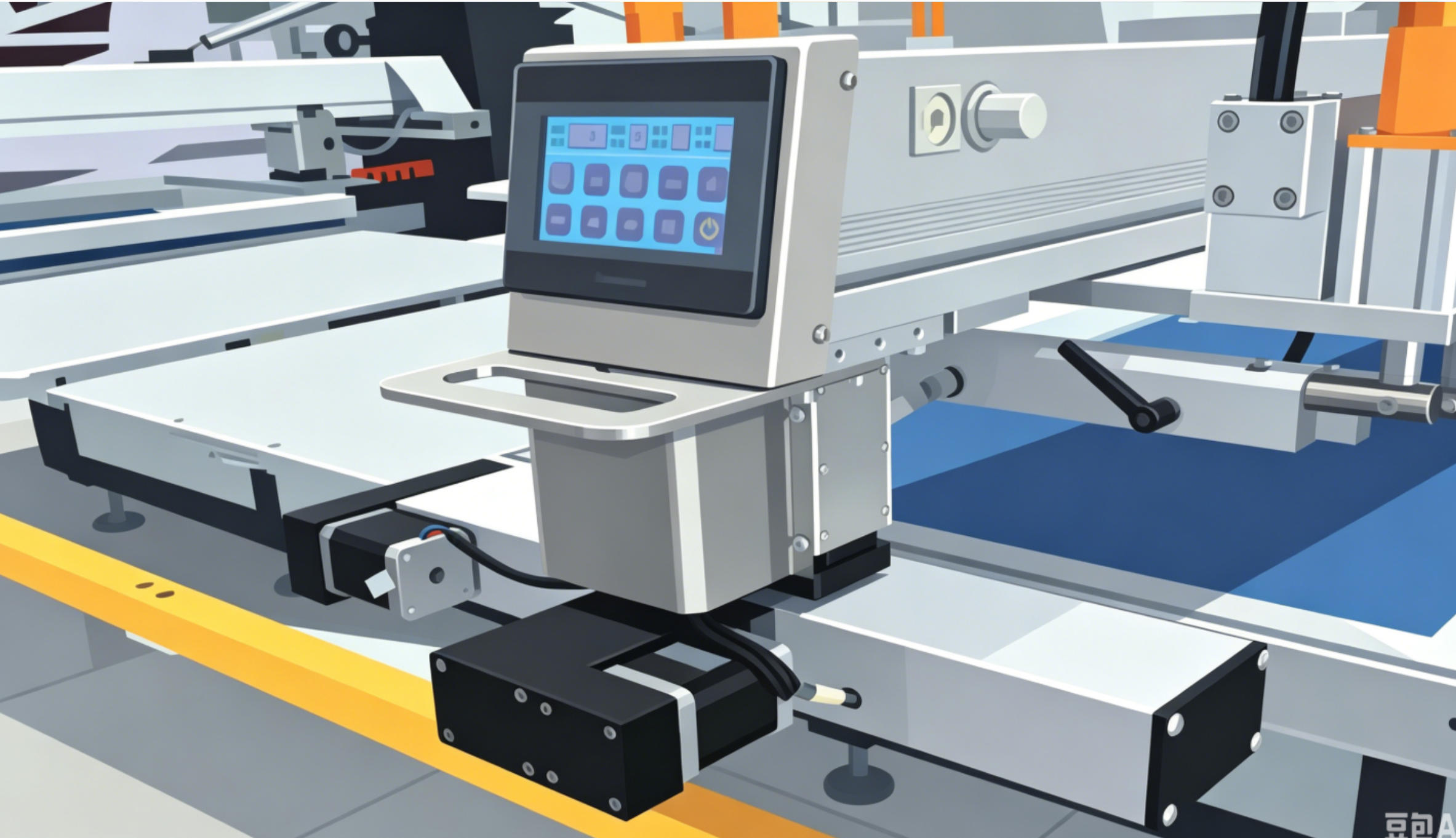

Oval Screen Printing Machine - Image 2

Oval Screen Printing Machine

Key Advantages

  • AI intelligent CCD visual automatic plate changing: Precise alignment via vision system, one-click screen replacement, greatly eliminating manual setting errors and doubling setup speed.
  • Full servo numerical control drive: Intelligently operated by touch screen, with smooth, low-noise transmission and stable overall machine operation.
  • High-efficiency mass production with multi-station design: Continuous oval circulating station operation delivers far higher productivity than traditional printing tables.
  • Stable high-precision overprinting: Minimal shifting deviation in repeated printing for consistent sharpness of patterns.
  • Wide compatibility with printing processes: Supports water-based ink, plastisol, thick stencil printing, discharge printing and more.
Category:

Description

Specification:                      OTV06        OTV08       OTV10        OTV12       OTV14       OTV16     OTV18       OTV20       OTV24
Printers Quantity:                    6                8                10              12               14              16            18              20            24
Pallets Quantity:.                    22              28               34             40              46              52            58             64            76
Printing Area:                     48cmX60cm( Pallets Size:50cmX75cm/Screen FrameSize:60cmX84cm)
Machine Length:                750cm        916cm     1088cm   1259cm    1430cm    1602cm   1173cm    1945cm   2288cm
Widthx Height:                    290cm*168 cm
Machine Weight:                2300kg      3000kg      3700kg     4400kg     5100kg     5800kg   6500kg    7200kg    8600kg
Power Supply：                  220V+PE,50-60HZ
Power Consumption：     3.9kw        4.7kw          5.5kw        6.8kw        7.6kw      8. 4kw      9.2kw      10kw        12.6kw
Air Pressure：                    0.6-0. 8Mpa(Must have the treatmentof drying andfiltering)
Air Consumpt. m3/min： 0.15            0.2                0.25          0.3            0.35           0.4          0.45          0.5            0.6
