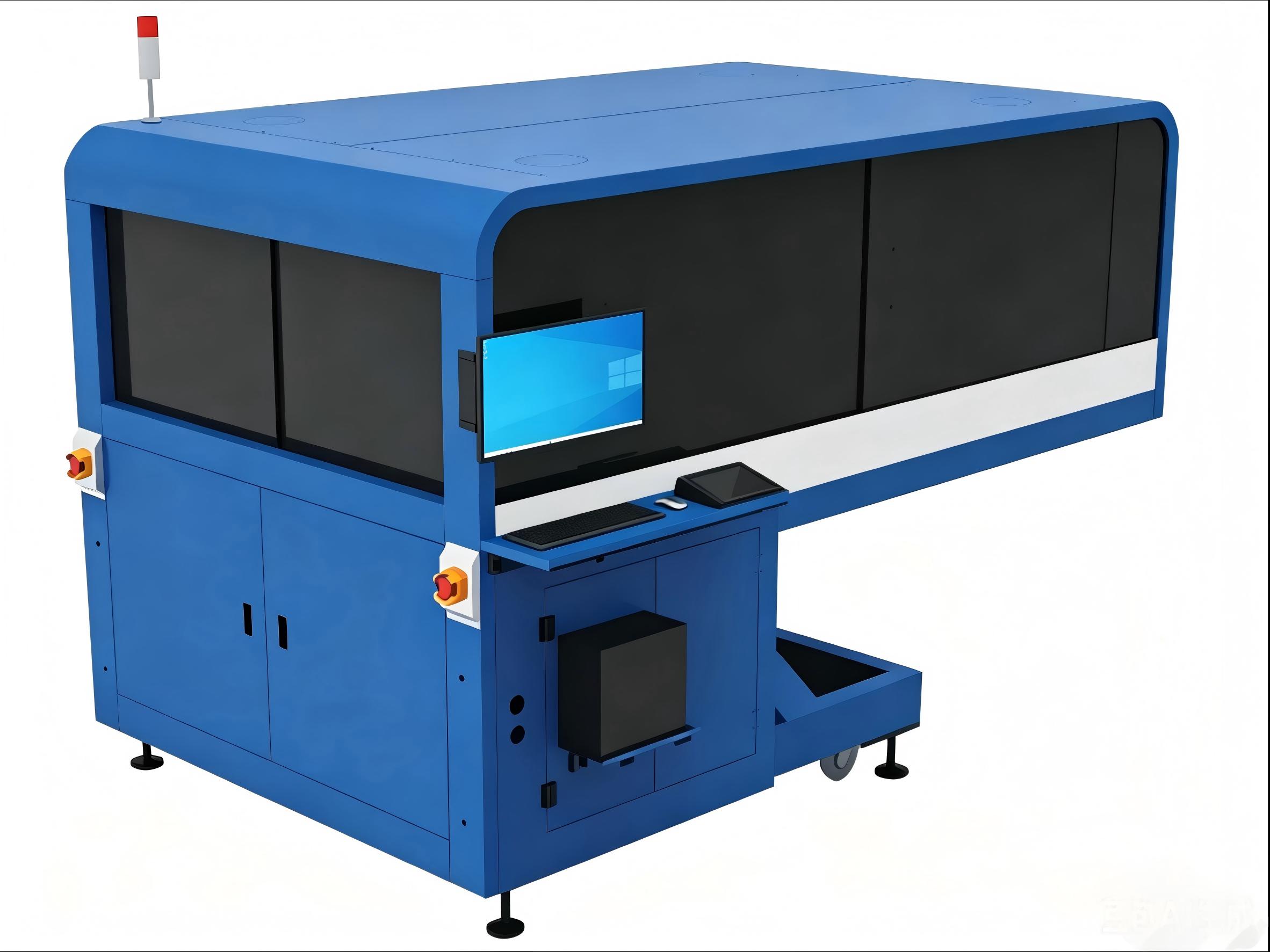

Digital Oval Printing Machine Ricoh Print Head
Description
Print Head Model: Japan Ricoh high precision industrial printer *12
Print Format: 600*700mm (Customizable)
Printing Accuracy：508/726*1200dpi (4pass)；508/726*1800dpi (6pass)
Printing Speed：450 Pcs/hour (A4 size)
Applicable Material: Natural fiber, man-made fiber, nylon, chemical fiber, etc
Color Mode: CM Y K(4 Colour)/C MY K R G(6 Colour)
Ink Type: High quality eco-friendly DTG ink
Ink System: Microcomputer negative pressure independent system, software intelligent control,2.5L large capacity ink supply system (automatic alarm)
Power Supply: High power, high voltage, and high-precision industrial switching power supply board of well-known domestic brands.
Maintenance System: Printhead automatic anticorrosive maintenance-free cleaning,moisturizing device.
Rip Software: MainTop / Photo Print (Optional)
Work Environment: Temperature :20-28 °C Humidity:50-70PH Voltage):220V Power:3KW
Size&Weight: Size:2900*1750*1933mm(L*W*H) Transport Weight: 1200kg
Drive System: Japan’s high-speed silent guide rail, high-speed zero friction maglevlinear motor,importedreading head from the UK (with a maximumaccuracy of 1 micrometer)Industrial gradeintegrated crossbeam,Japanese servo motor, double Y-axis gantry structure, Taiwan high-speedsilent industrial grade ball screw.
Rack Process: Precision steel welding base, industry-leading stress removal heattreatment process, highprecision gantry milling finish, industrial precisionaluminum imported from Japan, independent printhead adjustment,hard anodic oxidation surface treatment.
